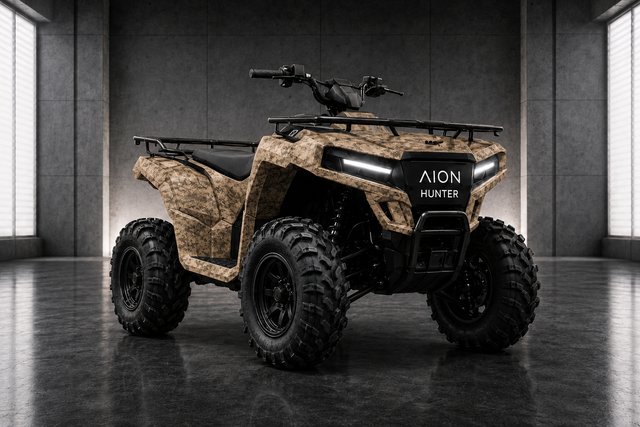

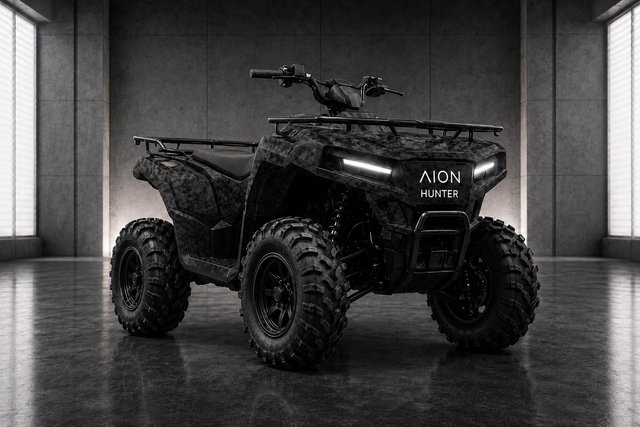

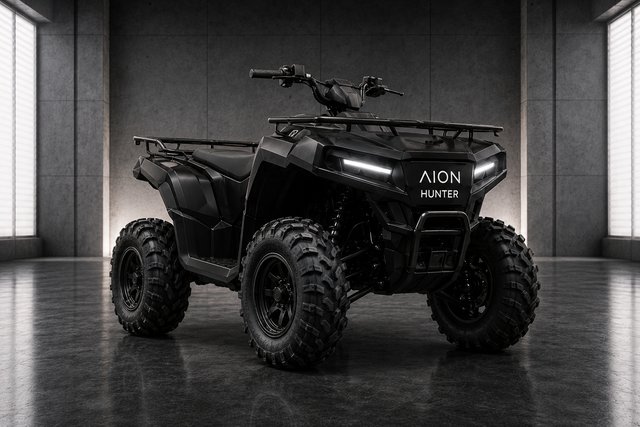

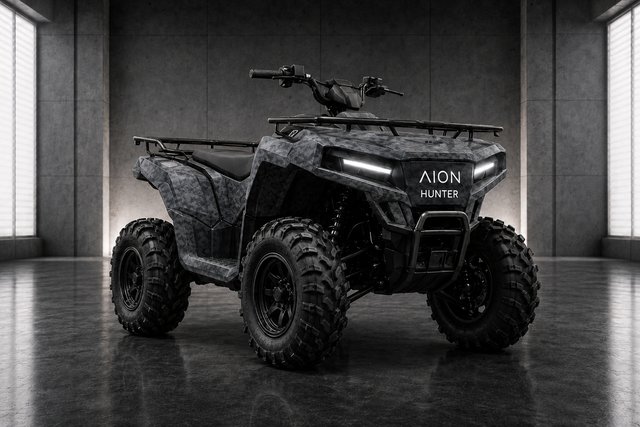

AION HUNTER
ATV
The hunter takes.
Two motors, one per axle. Four-wheel drive with no transfer case, no driveshaft and no front differential — and it does the whole thing silently.
You get to the stand without announcing it. No engine note, no exhaust, no warning — just two motors and quiet. For hunting, that is not a feature of the machine. It is the machine.
Four-wheel drive comes from putting a motor on each axle instead of running power the length of the machine mechanically. No transfer case, no driveshaft, no front differential. That is a lot of weight, and a lot of parts, that are not on the machine at all.
The battery bays sit at 45 degrees so packs lift out from the top instead of being wrestled out from underneath. The Hunter carries two packs. Two-wheel drive is the base machine and four-wheel drive is available on top of it — and every Hunter frame is built to take the 4WD kit, so a 2WD machine can be converted later instead of traded in.
Detail
What makes it a Hunter.
-
Motor per axle
True 4WD with no transfer case, driveshaft or front differential. Less to break, less to service, less to carry.
-
Silent by default
No engine note and no exhaust. For hunting, that is the product.
-
Top-loading packs
Bays sit at 45 degrees so packs lift out from above, not from underneath the machine.
-
Convert it later
Every frame is built to accept the 4WD kit, 2WD included. You add four-wheel drive to the machine you own.
Specifications
AION HUNTER
| Motors | 2 x QS 10kW V3, one per axle |
|---|---|
| Peak power | 40 kW combined |
| Continuous power | 20 kW combined |
| Drivetrain | 4WD, no transfer case or driveshaft |
| Battery packs | 2, top-loading at 45 degrees |
| Capacity | Up to 10 kWh with two packs |
| Drive options | 2WD standard, 4WD available |
| Range — trail | 100 miles Preliminary |
| Range — hard | 40 miles Preliminary |
Figures marked preliminary are engineering targets and are not final. They will be confirmed against validated test data before launch.
The Platform
Universal Pack & Motor
The Hunter shares its motor, battery pack, controller and universal sub-assembly with the rest of the off-road lineup. Hot swappable packs lets you ride the trail all day long.
